    RGB Indoor LED Display Screen Waterproof Fixed Wall Mount Curved

    Ask Lasest Price
    Brand Name : OEM
    Price : Negotiable
    Payment Terms : T/T
    Delivery Time : 25 Working days
    • Product Details
    • Company Profile

    RGB Indoor LED Display Screen Waterproof Fixed Wall Mount Curved

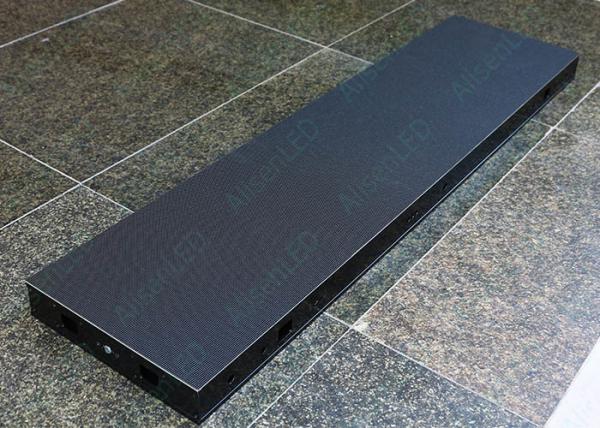

    Full Color Indoor Fixed Wall Mounted LED Display Screen 1000mmx250mm die-casting Aluminum cabinet

    Control System

    Brompton Or NovaStar System Supported.

    Secure And Strong Arc Lock


    • Putting connectors down is for easier pulling out and inserting in.
    • Testing button is to test the panel before building up the screen.
    • Strong locking system and curved design are available. It can be designed to be curved to form a curved screen from -6°(convex) to +6°(concave).

    RGB Indoor LED Display Screen Waterproof Fixed Wall Mount Curved

    Excellent Protection Gadgets

    A “L” shape steel plate on each corner can be turned into the proper direction to raise the modules. This smart design can help protect the LED when the panel hits the ground.

    By adopting high tech GOB(P1.9) technology, the screen is waterproof and anti-collision.

    We use the innovative “AOB” technology to reinforce the soldering connection between LED and PCB board. So the LED won’t be broken easily.

    Fast Ground Stacking Setup

    We can hang up the cabinet by fly bar with a truss system and also quickly install the cabinet on the ground with the clamp set and the ground stand system. That is very convenient for the functions such as sports events and exhibition.

    RGB Indoor LED Display Screen Waterproof Fixed Wall Mount Curved

    Brilliant Visual Performance

    LED signage always quickly captures the audience's attention and provides unforgettable visual experience for the viewers. Meanwhile, using black LED will increase the color contrast of the screen.

    Ultimate Refresh Rate Refresh rate of IR1 PRO LED video wall can be up to 3,840Hz

    Excellent Gray Scale Gray Scale of this kind of LED panel can be (13bits-24bits)

    Compatible Regular Truss

    Regular truss works for stacking, no custom truss needed.

    Application compatible with scenes


    • Conference
    • Exhibition
    • Training
    • Stage Performance
    • Office Work
    • Curved Wall
    • Curved Design
    • Round Shape

    ItemP1.9P2.6P2.9P3.9
    Pixel Pitch1.953mm2.604mm2.976mm3.906mm
    Led TypeSMD1515SMD1515SMD2020SMD2020
    Module Resolution128dots x 128dots96dots x 96dots84dots x 84dots64dots x 64dots
    Driving Mode1/32 Scan1/32 Scan1/28 Scan1/16 Scan
    Module Pixels16,384 dots9,216 dots7,056 dots4,096 dots
    Module Size250mm x 250mm250mm x 250mm250mm x 250mm250mm x 250mm
    Cabinet Size500mm x 500mm500mm x 500mm500mm x 500mm500mm x 500mm
    Cabinet Resolution256dots x 256dots192dots x 192dots168dots x 168dots128dots x 128dots
    Pixel Density262,144 dots/sqm147,456 dots/sqm112,896 dots/sqm65,536 dots/sqm
    Minimum Viewing Distance≥1.9 m≥2.6 m≥2.9 m≥3.9 m
    Brightness800nits ~ 1200nits800nits ~ 1200nits800nits ~ 1200nits800nits ~ 1200nits
    IP GradeIP43IP43IP43IP43
    Refresh Rate1,920HZ ~ 3840HZ1,920HZ ~ 3840HZ1,920HZ ~ 3840HZ1,920HZ ~ 3840HZ
    Gray Scale14bits ~ 24bits14bits ~ 24bits14bits ~ 24bits14bits ~ 24bits
    Viewing AngleH:160°/ V:160°H:160°/ V:160°H:160°/ V:160°H:160°/ V:160°
    Maxmum Power Consumption560W/sqm560W/sqm560W/sqm560W/sqm
    Average Power Consumption160W/sqm160W/sqm160W/sqm160W/sqm
    Input VoltageAC110V ~ AC220V @50/60HZAC110V ~ AC220V @50/60HZAC110V ~ AC220V @50/60HZAC110V ~ AC220V @50/60HZ
    Operating Temperature-20℃ ~ 65℃-20℃ ~ 65℃-20℃ ~ 65℃-20℃ ~ 65℃
    Operating Humidity10% ~ 90%10% ~ 90%10% ~ 90%10% ~ 90%
    Cabinet MaterialDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting Aluminum
    Cabinet Weight7.5 kg/panel7.5 kg/panel7.5 kg/panel7.5 kg/panel
    Operating SystemWindows(win7,Win8,Win10,etc)Windows(win7,Win8,Win10,etc)Windows(win7,Win8,Win10,etc)Windows(win7,Win8,Win10,etc)
    Signal Source CompatibilityDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etcDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etcDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etcDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
