    P5.2 - P10.4mm Transparent LED Display Screens video digital signage

    Ask Lasest Price
    Brand Name :
    Price : Negotiable
    Payment Terms : T/T
    Delivery Time : 25 Working days
    Model Number : OFIX-P5.2-P10.4-Transparent
    • Product Details
    • Company Profile

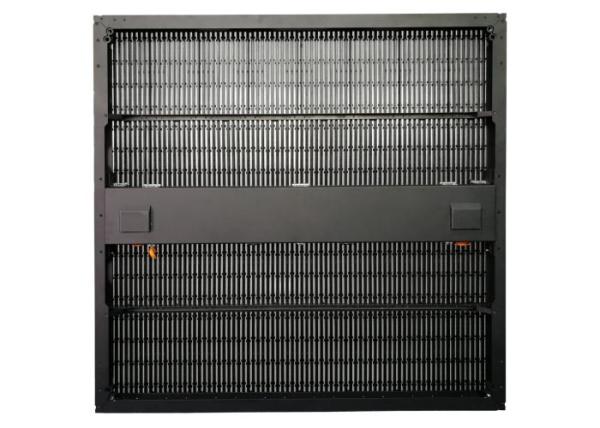

    P5.2 - P10.4mm Transparent LED Display Screens video digital signage

    P5.2 - P10.4 Transparent LED Display Screen Outdoor HD Video Digital Signage

    High Transparency

    Transparency of our T1 series transparent LED display is up to 52% or even 82%, which offers a range of creative applications for the live event and installation market.
    Outdoor transparent LED screen is available, which has IP65 level of waterproof and dustproof. The pixel pitch is P3.9.

    High Brightness

    Its brightness of our transparent LED display products is up to 5000nits or even higher. So the display content will still look very clear even if in the sunlight. Using its excellent video performance to capture the audience's attention and bring them unforgettable visual experience.
    Ecnomical and Eco-friendly
    The power consumption is 1/3 lower than normal screen.


    P5.2 - P10.4mm Transparent LED Display Screens video digital signage

    Light and Slim

    80mm cabinet thickness and 4.3kgs weight make T1 lighter and thinner than most of other transparent LED displays in the market.
    Standard & Customized Casbinet Design
    Standard cabinet design 1,000mm x 1000mm brings easier installation. Meanwhile, the customized design is available.

    Modular Design

    The modular power box and PCB make repair easy and replacement of spare parts cost-effective. The module PCB helps to control the flatness of the screen campared with the slide emitting LED PCB strip.

    Fast and Easy Installation

    Our transparent LED display comes with a wide range of accessories, connection locks, transport flight cases and hanging options. The fast lock assembly contributes to efficient handing, transportation and ease of installation.

    Flexibility

    Owning to high flexibility of cabinet and high density of pixel pitch, units may be multi-angle folded to satisfy creative HD design.

    Application Fields

    To be adapted for every different scene, our T1 products are made up of superior quality materials with the concise and strong structure. T1 products are usually used in:

    • Museums
    • Shopping malls
    • Exhibition events
    • Retail And Advertising
    • Hospitality and Entertainment
    • Exhibitions and Events
    • Architecture and Design
    • Automotive Industry
    • Museums and Galleries

    ItemP5.2-P10.4mm
    Pixel Pitch5.2mmx10.4mm
    Led TypeSMD2727
    Module Resolution12dots x 96dots
    Driving Mode1/4 Scan
    Module Pixels1,152 dots
    Module Size125mm x 500mm
    Cabinet Size1,000mm x 1000mm
    Cabinet Resolution192dots x 96dots
    Pixel Density12,800 dots/sqm
    Minimum Viewing Distance≥12 m
    Brightness6,000nits
    IP GradeIP65|IP65
    Refresh Rate3,840HZ
    Gray Scale14bits
    Viewing AngleH:160°/ V:160°
    Maxmum Power Consumption850W/sqm
    Average Power Consumption250W/sqm
    Input VoltageAC110V ~ AC220V @50/60HZ
    Operating Temperature-20℃ ~ 65℃
    Operating Humidity10% ~ 90%
    Cabinet MaterialAluminum
    Cabinet Weight19 kg/panel
    Operating SystemWindows(win7,Win8,Win10,etc)
    Signal Source CompatibilityDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
