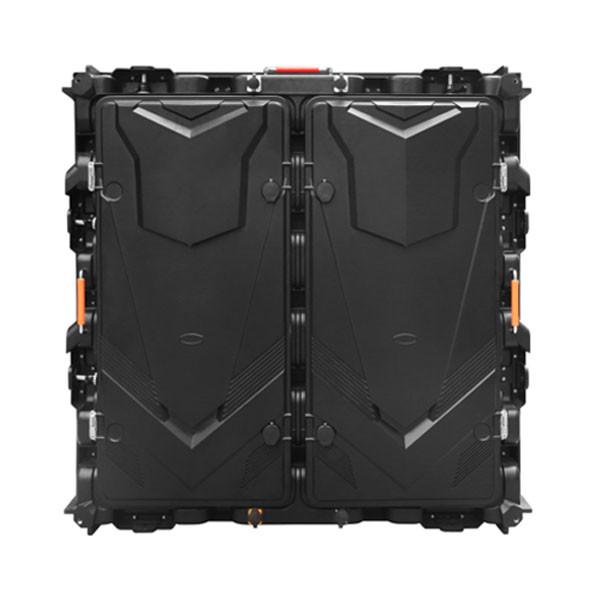

    P8 Outdoor Full Color LED Display SMD 960mmx960mm Cabinet

    Ask Lasest Price
    Brand Name :
    Price : Negotiable
    Payment Terms : T/T
    Delivery Time : 25 Working days
    Model Number : P8-SMD-Die-Cast-Aluminum
    • Product Details
    • Company Profile

    P8 Outdoor Full Color LED Display SMD 960mmx960mm Cabinet

    P8mm Full Color Outdoor Fixed LED Display 960mmx960mm Cabinet


    Pixel Pitch Available

    The pixel pitch are P6.67mm, P8mm, P10mm;

    Visual Effect

    High contrast: The contrast ratio of the LED screen gives a sharp image quality.

    High brightness: The brightness of the LED Display can be up to 10,000 nits. Even the screen is facing directly sunlight, the image still looks clear.

    Energy Saving

    We use customized PCB and power supply, so average power consumption is less than 150W/sqm.

    Compared with the similar products in the market. LED display saves 20% energy.

    Ultra-Wide Viewing Angle

    With a 120 degree wide viewing angle, the screen can be seen from as various positions as possible.

    Application of outdoor led display

    High Brightness

    Gold bonding wire LED with stable driving IC ensures the high brightness of 10,000nits and long lifespan of modules.

    High Refresh Rate

    The image on the LED screen is formed perfectly. One of the reasons is that the refresh rate can reach 3,840Hz.

    High Protective Grades

    3 layers of high-quality conformal coating protects the driving IC and other electron components from dust and humidity. Strong signal cable brings more security and the cables look neat.

    Great Gray Scale

    Most LED screens from other suppliers have a low gray scale, so some of the colors can't be displayed on the screen, and the image on the LED screen appears like a ghost image. Our LED screen grays cale is 13bits ~ 24bits. It is very high so the image looks very vivid and perfect.

    Stable Outdoor Fixed Installation

    The LED display cabinet is made of steel material or aluminum material. We adopt the best materials and great crafts to manufacturing this LED display. Therefore, the LED screen functions are very stable in outdoor scenes.

    Visual Performance


    • High Contrast: The contrast ratio of the LED screen gives sharp image quality.
    • High Brightness: The brightness of the LED display can be up to 10,000nits. Even if the screen is facing the direct sunlight, the image still looks clear.

    Stable Performance, Reliable Quality

    We have sold many LED screens to different countries and regions like America, Europe, Middle East, Africa, etc.

    Longer Life-Span Working Stable

    Many of our screens have been working for more than 5 years, and they are still working properly.
    Our LED screens are a great solution for outdoor advertising billboards.

    Application Fields


    • Outdoor Advertising Display
    • Shopping Mall
    • Billboards
    • Outdoor Fixed LED Screen

    ItemP8
    Pixel Pitch8mm
    Led TypeSMD
    Module Resolution40dots x 20dots
    Driving Mode1/5
    Module Size320mm x 160mm x 27mm
    Cabinet Size960mm x 960mm
    Cabinet Resolution120dots x 120dots
    Pixel Density15,625 dots/sqm
    Minimum Viewing Distance≥8 m
    Brightness≥8,000nits
    IP GradeIP65
    Refresh Rate1920 ~ 3840HZ
    Gray Scale13bits ~ 24bits
    Viewing AngleH:120°/ V:60°
    Maxmum Power Consumption550W/sqm
    Average Power Consumption185W/sqm
    Input VoltageAC110V ~ AC220V @50/60HZ
    Operating Temperature-20℃ ~ 65℃
    Operating Humidity10% ~ 90%
    Cabinet MaterialDie-Casting Aluminum
    Cabinet Weight36 kg
    Operating SystemWindows(win7,Win8,Win10,etc)
    Signal Source CompatibilityDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
