    0.7mm Cob Led Video Wall For Commercial Advertising

    Ask Lasest Price
    Brand Name : AlisenLED/OEM/ODM
    Model Number : P0.7,P0.9/P1.25,P1.5,P1.8,
    Certification : CE/FCC/CB/IECEE
    Payment Terms : T/T, L/C, D/P, D/A, Western Union
    Supply Ability : 5000SQM/Month
    Delivery Time : 7-30 Working days
    • Product Details
    • Company Profile

    0.7mm Cob Led Video Wall For Commercial Advertising

    COB LED Video Wall ,COB LED Display Screen Solution for Commercial and Advertising

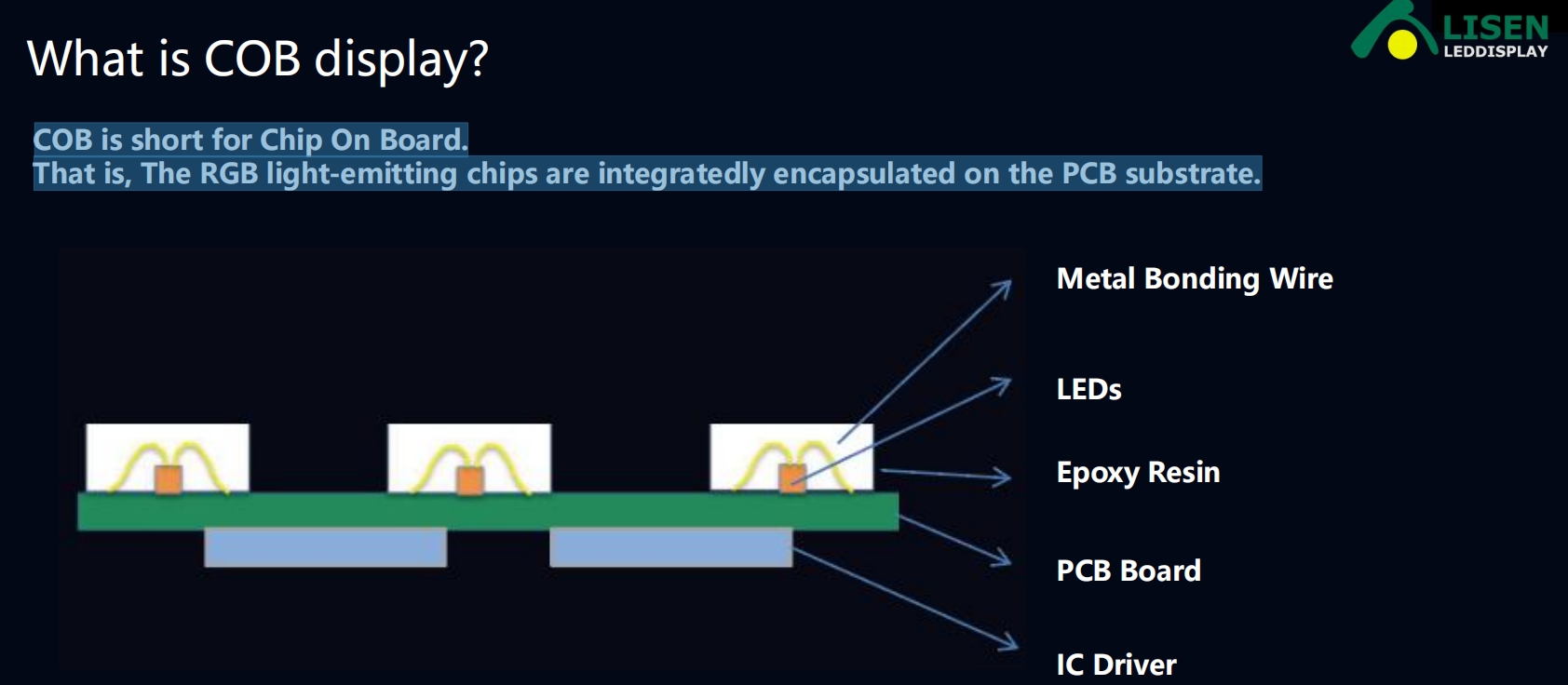

    What is COB display?

    COB is short for Chip On Board.
    That is, The RGB light-emitting chips are integratedly encapsulated on the PCB substrate.

    MAIN FEATURES

    High Contrast & Brightness for COB LED Wall

    ・ZERO light blocking ensures superb sharpness and contrast

    Wide Viewing Angle

    ・Nearly 180° viewing angle with dazzling brightness and colour contrast

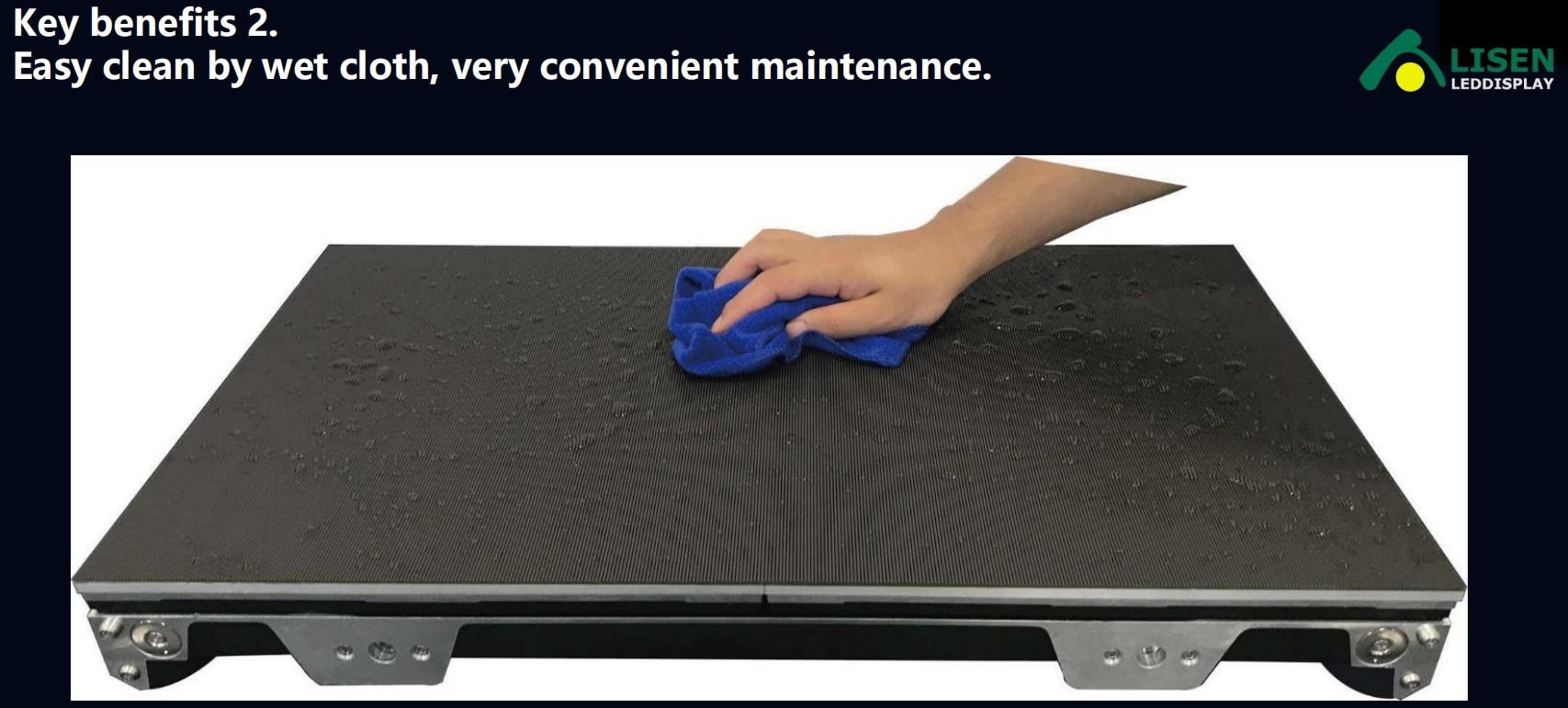

    Shock Resistant & Waterproof

    ・COB Epoxy Layer offers solid protection on the once-fragile display

    Eye-friendly Displays

    ・Low blue light emission prevents eyes strain even under long exposure to the display

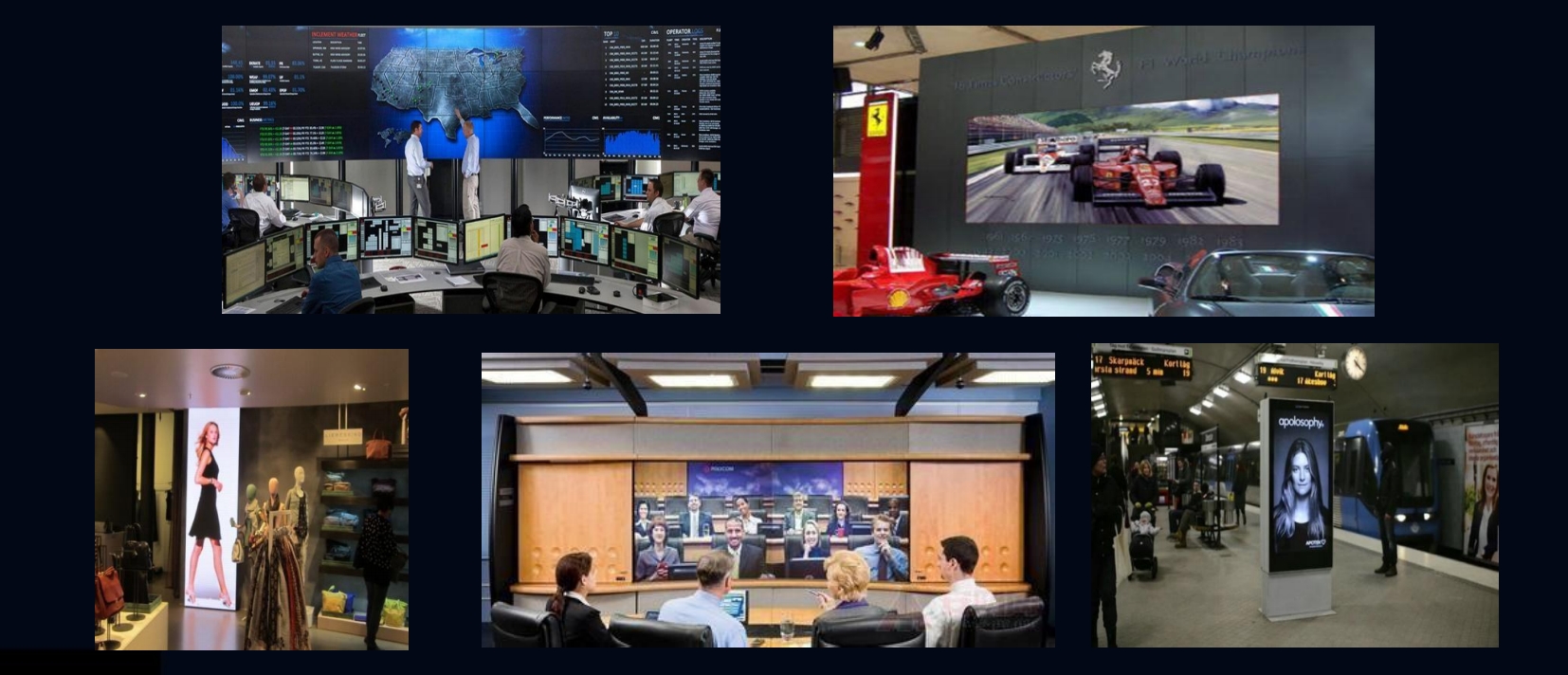

    -Make COB LED display Screen to public daily life
    Suitable to use at deluxe cruiser, museum, amusement park,pub, night club, airport, luxury store,railway
    and metro station, expo, enterprise lobby, meeting room, control room, hotel lobby, seaside holiday resort,and etc

    Flip-chip COB LED Wall Display Specifications

    Specification

    P0.78


    P0.93P1.25P1.56P1.87

    COB Lamp Board Size


    150 x 168.75 mm


    COB Panel solution

    192 x 216


    160 x 180

    120 x 135


    96 x 108


    80 x 90


    Unit Size

    600x337.5x39.5


    Display Unit Resolution

    768 x 432


    640x720 | 640x360


    480x540 | 480x270


    384x432 | 384x216


    320x160 | 320x180


    Circuit Scheme

    Negative circuit


    Gray Scale18 ~ 20 Bit +
    Brightness600 nits Standard
    Contrast Ratio1000 : 1
    Refresh Rate1920 ~ 3840 HZ
    View AngleHorizontal / Verttical 160 Degree
    Power RequirementsAC100 ~ 240 (50 / 60 HZ)
    Max. Power Consumption370 W/Sqm370 W/Sqm
    Ave. Power Consumption320 W/Sqm320 W/Sqm
